In the world of optics, the letter “f” typically stands for focal length, which is a key concept in understanding how lenses work.
The f-number, or f-stop, is a crucial parameter that defines the aperture of a lens, indicating how much light can enter an optical system. This measurement plays an essential role in photography and imaging, affecting exposure, depth of field, and the overall quality of the captured image.

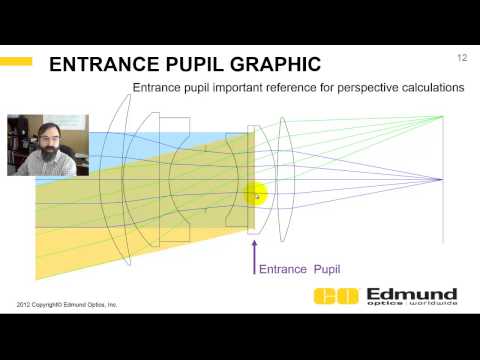

When dealing with camera lenses, the f-number is expressed as the ratio of the lens’s focal length to the diameter of the entrance pupil.
A lower f-number allows more light to reach the sensor, which is especially beneficial in low-light conditions. Photographers and optical engineers must understand this relationship to select the right lens settings for their needs.
As the blog post unfolds, readers will learn how the f-number impacts various aspects of light management and image quality. From portrait photography to scientific imaging, knowing how to manipulate the f-number can lead to better outcomes and more stunning visuals.
Fundamentals of Focal Length and F-Number
Focal length and f-number are essential concepts in optics, crucial for understanding how lenses work. These terms relate to how lenses gather light and determine image characteristics like brightness and depth of field.
Understanding Focal Length
Focal length is the distance from the lens to the focus point, where light converges. It is measured in millimeters (mm) and influences image magnification.
A longer focal length results in a narrower field of view, making subjects appear larger. For example, a 200mm lens will magnify an image more than a 50mm lens.
Focal lengths can be categorized as wide-angle, standard, or telephoto.
Wide-angle lenses typically have shorter focal lengths (e.g., 24mm) and capture more of the scene. In contrast, telephoto lenses (e.g., 100mm and above) narrow the view and bring distant subjects closer.
Defining the F-Number
The f-number, or f-stop, represents the ratio of the lens’s focal length to the diameter of the entrance pupil (the effective aperture). The formula is expressed as:
f-number = focal length / aperture diameter.
Lower f-numbers, like f/2.8, indicate a larger aperture that allows more light to hit the sensor. This results in brighter images and a shallower depth of field.
Conversely, higher f-numbers, like f/16, signify a smaller aperture, leading to less light and a greater depth of field.
In photography, understanding the f-number enables the photographer to control exposure and focus. It directly affects how sharp or blurred backgrounds appear, which is vital for creative compositions.
Aperture, Exposure, and Depth of Field
Aperture plays a critical role in photography and optics. It influences exposure, brightness, and depth of field. Understanding these elements helps in capturing images with the desired focus and lighting.
Role of Aperture in Optics
Aperture refers to the opening in a camera lens that allows light to enter. It is measured in f-stops, such as f/1.8 or f/16.
A smaller f-stop number means a larger aperture, which permits more light to reach the sensor. This is crucial for low-light conditions.
The aperture diameter varies with the f-stop setting. For instance, with a 200mm lens at f/2.8, the diameter is approximately 71mm.
This large opening not only enhances brightness but also impacts the lens speed, aiding in quicker shutter speeds. Thus, selecting the right aperture is essential for the best exposure.
Exposure and Brightness
Exposure determines how light or dark an image appears. It is the result of a combination of aperture, shutter speed, and ISO settings.
Shutter speeds control the duration that light hits the sensor. A fast shutter speed (like 1/1000 seconds) can capture action without blur, while a slow speed (like 1/2 seconds) allows more light, which is useful in darker settings.
Brightness in an image is affected directly by both aperture and exposure time.
When the aperture is wide, it allows for greater light intensity, leading to brighter images. Conversely, a narrow aperture reduces brightness, making it vital to balance these factors to achieve the desired look.
Controlling Depth of Field
Depth of field (DoF) describes how much of an image is in focus. A wide aperture (e.g., f/1.8) creates a shallow depth of field, resulting in a blurred background. This effect is popular in portrait photography, as it emphasizes the subject and minimizes distractions.
On the other hand, a narrow aperture (e.g., f/16) increases depth of field, keeping more of the scene in focus. This setting is useful in landscape photography where detail throughout the frame is important.
By adjusting the aperture, photographers can effectively control the depth of field for different artistic outcomes.
Impact of Aperture Size on Photography
Aperture size plays a crucial role in photography by influencing image quality and the creative effects a photographer can achieve. The effects vary significantly between different types of photography, including macro and landscape, where the choice of aperture can enhance or hinder the final image.
Correlation Between Aperture and Image Quality
Aperture size directly affects the image quality produced by a camera.
A larger aperture, represented by a smaller f-number (like f/2), allows more light to hit the sensor. This results in brighter photos with greater luminance. However, larger apertures can decrease depth of field, creating a more pronounced bokeh effect, which is desirable for portraits but may not work well for landscapes.
On the other hand, a smaller aperture (like f/16) increases depth of field, keeping more of the scene in focus. This can enhance the resolution and clarity of details in the image, making it ideal for wide-angle shots. Still, smaller apertures require more light, which can lead to longer exposure times, increasing the risk of motion blur if not managed correctly.
Aperture Effects on Macro and Landscape Photography
In macro photography, the choice of aperture is essential for achieving sharpness and detail in close-up shots. A wider aperture can provide a pleasing bokeh, isolating the subject against a soft background. However, it can also make precise focusing challenging due to the shallow depth of field. Macro photographers often opt for smaller apertures, such as f/8 or f/11, to ensure that intricate details are sharp and clear.
For landscape photography, using a smaller aperture helps capture a greater depth of field, ensuring both foreground and background are in focus. Photographers typically use f/8 to f/11 for this kind of work. This approach not only adds to the image’s resolution but also enhances the overall clarity, making the scene appear more vibrant and detailed.
Advanced Optical Concepts and Design
In the realm of optics, advanced concepts play a crucial role in lens performance and imaging quality. These factors impact everything from aberrations in image clarity to the efficiency of thermal imaging technology.
Exploring Lens Aberrations
Lens aberrations are flaws in image formation that occur due to the design of the lens system. There are several types of aberrations, including chromatic, spherical, and coma.
- Chromatic Aberration occurs when a lens fails to focus all colors at the same point. This often results in fringes of color around objects.
- Spherical Aberration happens when light rays that strike the edge of a lens come to focus at a different point than those that hit closer to the center.
Minimizing these aberrations is essential. Advanced lens design techniques, such as using aspherical lenses, can effectively reduce aberrations.
Numerical aperture (NA) is a vital factor in lens design, influencing depth of field (DOF) and resolution. Understanding these concepts helps in creating high-performance optical systems.
Design Considerations for Camera Lenses
When designing camera lenses, several factors must be addressed to achieve optimal performance. The effective aperture and diaphragm settings directly affect image exposure and depth of field.
A larger diaphragm allows more light to enter, which can enhance exposure but reduces DOF.
Key considerations include:
- Image Sensor Compatibility: Different interchangeable lenses must match the camera’s image sensor for effective performance.
- Lens Coatings: Anti-reflective coatings can reduce glare and improve light transmission, enhancing image quality.
Designers also take into account the physical dimensions and weight of lenses to ensure usability in various photography scenarios. Balancing these factors is crucial to meeting photographer needs.
Understanding the Role of Thermal Imaging in Optics
Thermal imaging, particularly in the context of thermal infrared cameras, relies on detecting infrared radiation rather than visible light.
These cameras are equipped with infrared sensors that capture heat emitted from objects.
This technology is critical for surveillance and search-and-rescue operations. Key components include:
- Long-Wave Infrared (LWIR): LWIR cameras excel in low-visibility conditions.
- Image Sensors: Specialized sensors convert thermal radiation into visible images.
Grounded in optical principles, thermal imaging systems must integrate advanced optics to focus and sharpen thermal images.
